适用于额定电压DC1500V的直流系统
符合CQC1143&；PPP58049A、IEC60228:5级、IEC60332-1-2

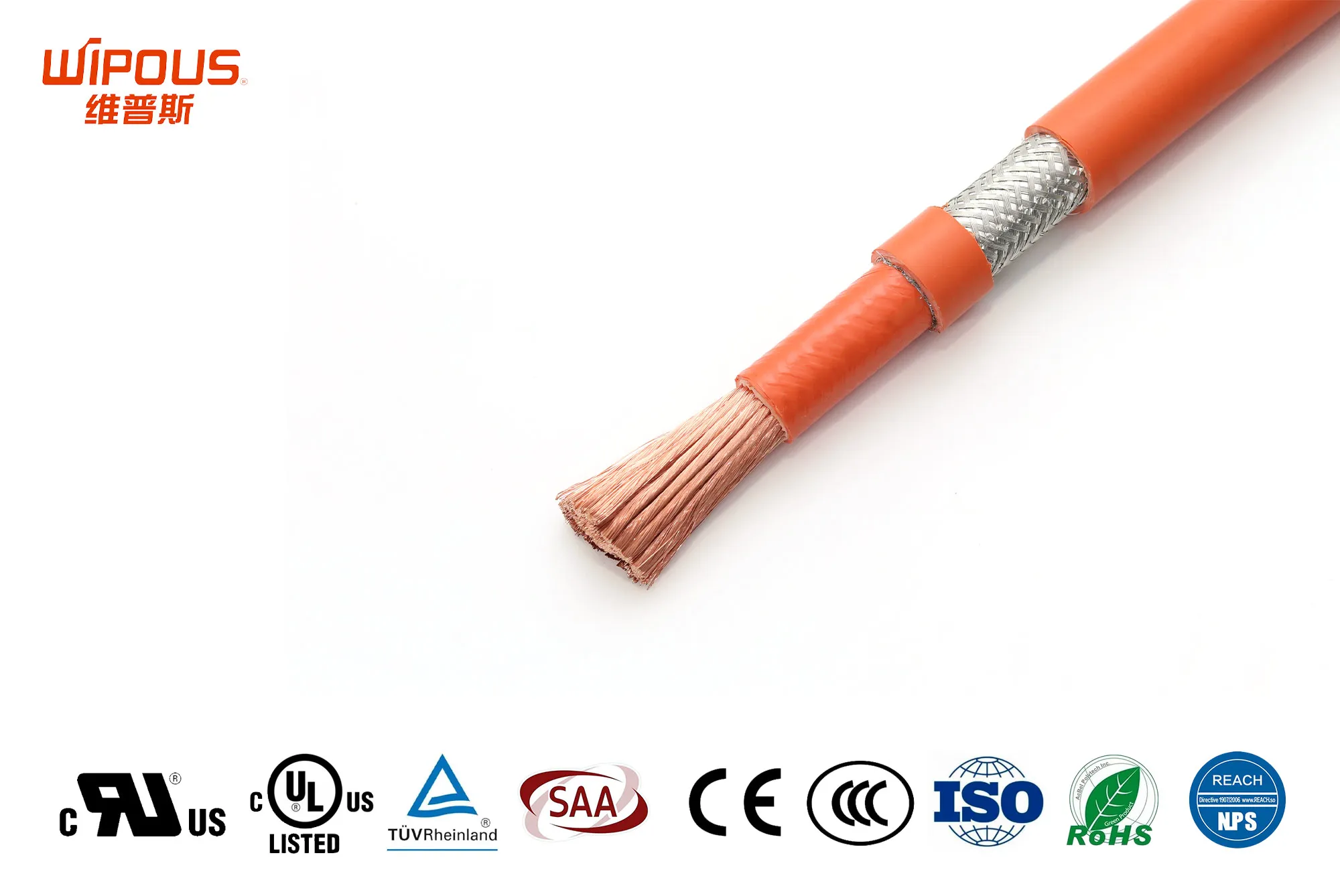

多股裸铜或镀锡铜，符合IEC60228标准，5级导体
额定电压：DC 1500V
| Item No | Specification | No of conductor | Conductor diameter mm |
Insulation thickness mm |
Sheath thickness mm |
Insulation outer diameter mm |
Cable weight kg/km |
| 1 | 4mm² | 82 | 0.25 | 0.8 | 0.7 | 5.8 | 70 |
| 2 | 6mm² | 122 | 0.25 | 0.8 | 0.7 | 6.6 | 95 |
| 3 | 10mm² | 204 | 0.25 | 1.0 | 0.7 | 8.0 | 147 |
| 4 | 16mm² | 326 | 0.25 | 1.1 | 0.7 | 9.4 | 217 |
| 5 | 25mm² | 510 | 0.25 | 1.3 | 0.8 | 11.5 | 333 |
| 6 | 35mm² | 713 | 0.25 | 1.3 | 0.8 | 12.9 | 439 |
| 7 | 50mm² | 1018 | 0.25 | 1.5 | 0.8 | 14.9 | 609 |
| 8 | 70mm² | 1426 | 0.25 | 1.5 | 0.9 | 17.0 | 824 |
| 9 | 95mm² | 1935 | 0.25 | 1.5 | 0.9 | 19.0 | 1078 |
| 10 | 120mm² | 2442 | 0.25 | 1.5 | 0.9 | 20.8 | 1333 |
| 11 | 150mm² | 3055 | 0.25 | 1.7 | 1 | 23.2 | 1667 |
| 12 | 185mm² | 1472 | 0.40 | 1.9 | 1 | 25.6 | 2040 |
| 13 | 240mm² | 1910 | 0.40 | 2.0 | 1.1 | 28.8 | 2622 |
